80 t
Single lift capacity
24 m
Longest section handled
4,000 m²
Covered fabrication bay
EXC3
EN 1090 execution class

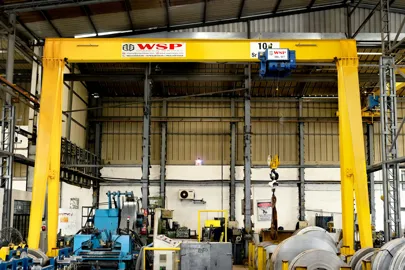

One bay, four processes, no subcontractors
Material lands in the yard and leaves through the paint shop. Everything between those two points happens under the same roof and the same inspection regime, which is why we can hold a date.
Profiling

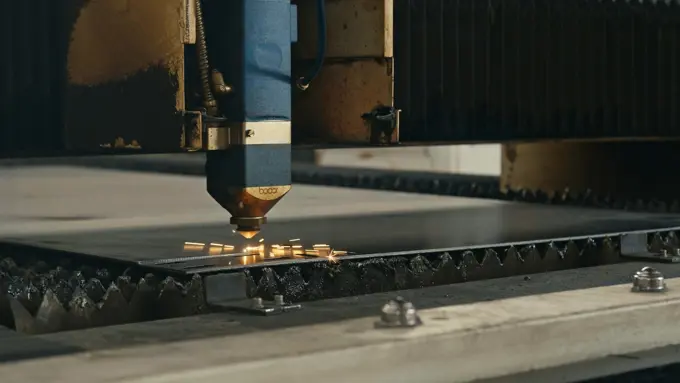

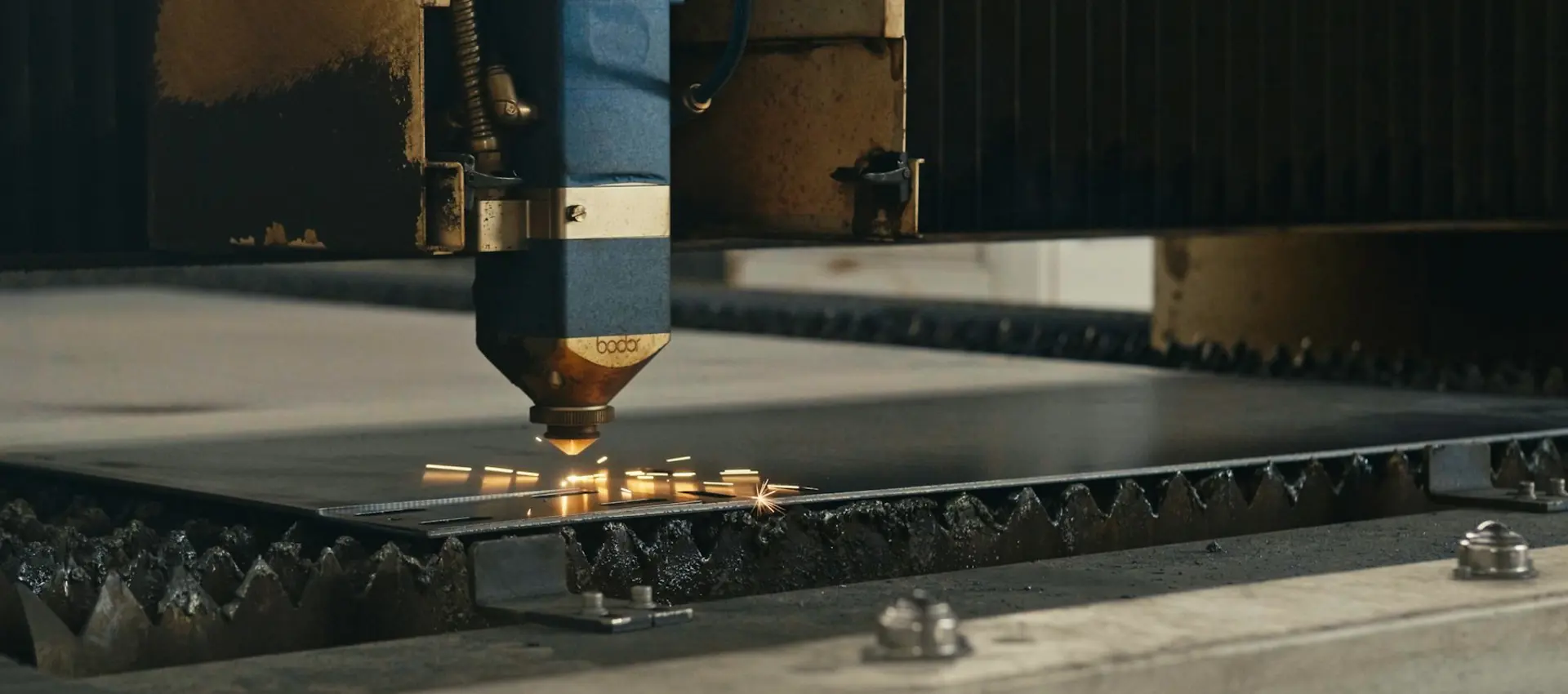

Fibre laser to 25 mm, plasma to 60 mm, oxy to 200 mm. Nested from your DXF or ours.
Forming

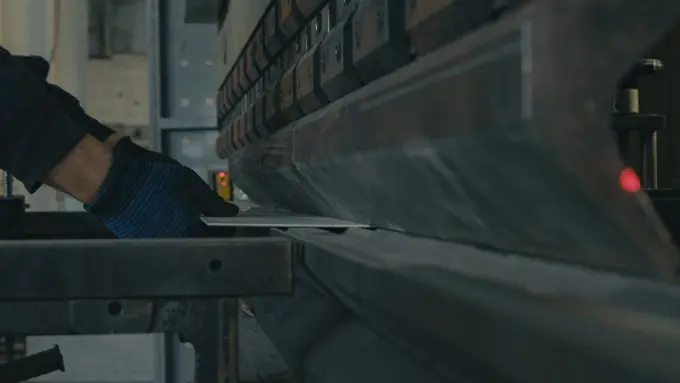

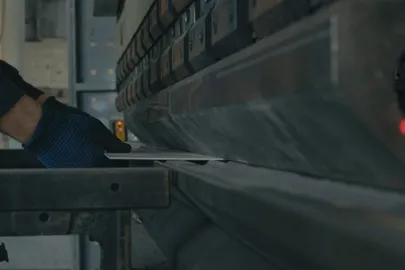

640 t press brake at 4 m, plate rolls to 20 mm, section rolling in house.
Welding

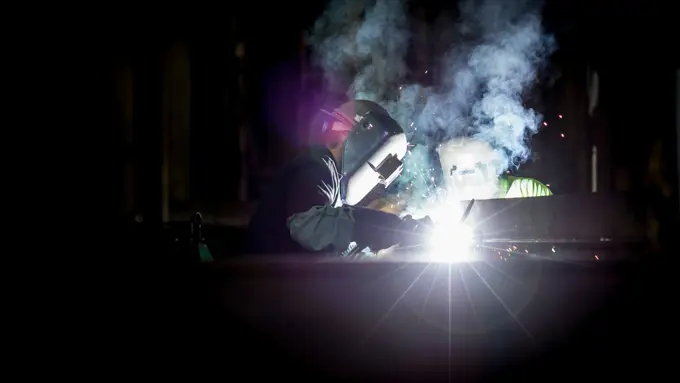

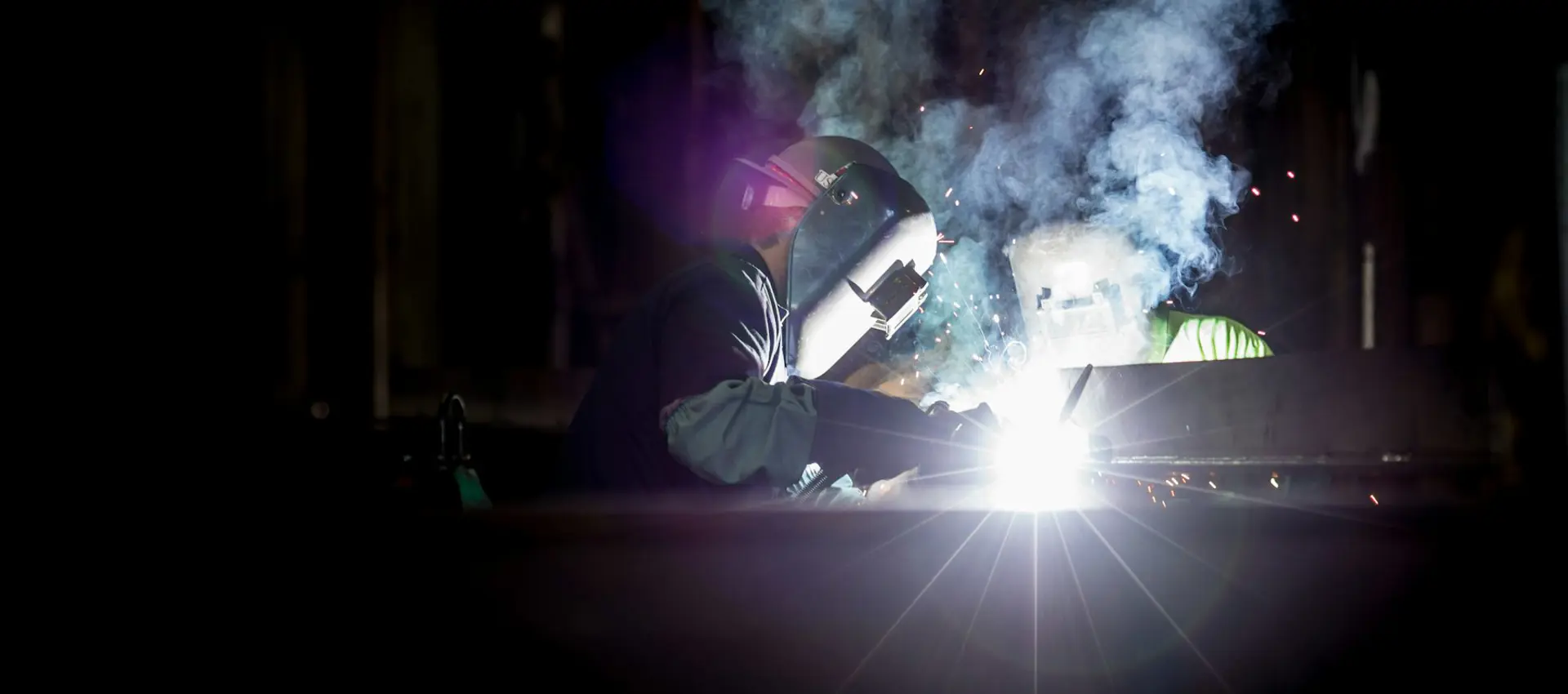

Coded MIG, TIG and submerged arc. Procedures held to ISO 15614 and audited twice a year.
Machining

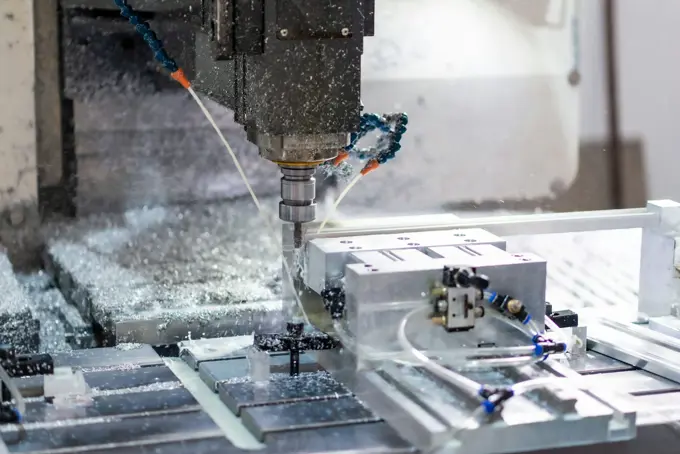

Bed mill to 6 m, horizontal borer, and a lathe that takes a 1.2 m swing.
Envelope
| Process | Max length | Max thickness | Max weight |
|---|---|---|---|
| Laser profiling | 6.0 m | 25 mm | 6 t sheet |
| Plasma profiling | 12.0 m | 60 mm | 18 t plate |
| Press braking | 4.0 m | 20 mm | n/a |
| Plate rolling | 3.0 m | 20 mm | n/a |
| Welded assembly | 24.0 m | — | 80 t |
| Shot blast and paint | 18.0 m | — | 40 t |
Recent work
Capabilities
Profiling, forming, welding, machining, blasting and paint, all under one roof at Tyne Dock.
Sectors
Marine, offshore energy, rail and infrastructure, and process plant.
Case Studies
Five jobs from the last two years, with the numbers.
Downloads
Capability statement, certification and terms.
Contact
Northgate Works, Tyne Dock. Send a drawing and get a price in two days.
What buyers say
They quoted in a day and held the date through two design changes.
The documentation pack arrived before the steel did. That never happens.
Fourteen sets on a nine-week drumbeat, and two of them landed early.
They found the error in our drawing before they cut anything.
Send us a drawing
DXF, STEP or a photograph of a sketch. We will come back with a price and a date, usually inside two working days.
